UNITED POWERSYS specializes in R&D of lithium-ion and sodium batteries for industrial vehicles, offering safe, reliable and efficient power solutions.Our scissor lift batteries for aerial work platforms adopt a modular design, fit lead-acid battery sizes and meet BCI standards, with 24V/36V/48V available. They support 6–10 parallel packs for capacity expansion to enhance endurance and high-power output.Using Grade A cells and automotive-grade standards, the batteries feature dual-protection BMS, Bluetooth, thermal management, 2-hour fast charging, intelligent diagnosis and APP control, adapting to wide temperatures. Certified by UL and CE, they are widely used in warehousing, construction and municipal services, engineered for aerial work platform batteries and built for demanding industrial use across European and American markets.
Key Features：
- Grade A LFP Cell, built-in heater
- Cycle life of ≥ 3,500 cycles
- 2-hour rate fast charging supported
- 10-year design life
- Global safety certifications
- Automotive-grade manufacturing quality
- Advanced Battery Management System(BMS)
- APP platform management supported
- Compatible with lead-acid battery dimensions (BCI standard)
- Modular design supporting parallel capacity expansion
| NOMINAL （VP24-104A-A） | |
| Voltage | 25.6V |
|---|---|
| Nominal Capacity (25℃) | 104Ah (capacity is measured under 0.2C / 25℃ @ BOL) |
| ELECTRICAL | |
| Nominal Energy (25℃, 0.2C) | 2662Wh (capacity is measured under 0.2C / 25℃ @ BOL) |
| Volumetric Energy Density | 181.3Wh/L |
| Gravimetric Energy Density | 131.1Wh/kg |
| Maximum Continuous Discharging Current | 100A |
| Peak Discharge Current(<30s) | 200A |
| Discharge Cut-off Voltage | 20V |
| Maximum Continuous Charging Current | 50A |
| Recommended Charging Current | 50A |
| Charge Cut-off Voltage | 29.2V |
| Shipment Voltage | 25.6V ~ 27.2V |
| Internal Impendence(AC) | < 20mΩ |
| MECHANICAL | |
| Dimensions (W × H × D) | 275(±2) × 186(±2) × 287(±2) mm |
| Weight | Approx. 20.3 ± 2 kg |
| Total Cells Quantity in Battery Module | 8S2P (Prismatic type cell) |
| Materials of Battery Case | ABS+PC |
| Cell | LFP 52Ah |
| Color | 2935C(Blue) |
| Ingress Protection Rating | IP67 |
| ENVIRONMENTAL | |
| Calendar Life (25℃) | > 10 years |
| Cycle Life (0.5C/0.5C, DOD 100%, 25℃)* | SOH 70%, ≥3500 cycles |
| Optimum Working Temperature** | 10℃ ~ 35℃ |
| Charge Temperature Range | 0℃ ~ 55℃ |
| Discharge Temperature Range | -20℃ ~ 60℃ |
| Storage Temperature | 0℃ ~ 45℃ (Recommended range: 10℃ ~ 35℃) |
| BMS PARAMETERS | |
| Voltage (Charge) | Cell voltage protection: 3.65V protection (Recover at 3.55V) Total voltage protection: 29.2V protection (Recover at 28.4V) |
| Voltage (Discharge) | Cell voltage protection: 2.5V protection (Recover at 3.0V) Total voltage protection: 20V protection (Recover at 24V) |
| Current (Charge) | Normal ≤ 50A |
| Current (Discharge) | Normal ≤ 100A Over current protection: > 200A (30 sec) Short circuit protection: ≥ 2000A (< 500us) |
| Temp (Cell) | Low temp protection: Charging < 0℃, Discharging < -20℃ High temp protection: Charging > 55℃, Discharging > 60℃ |
| Temp (PCB) | Temp protection ≥ 80℃ (Recovery < 75℃) |
| Cell Balance (Balance) | BMS includes passive balancing circuit and algorithm, (Current: < 50mA) |
| STANDARDS | |
| Safety | UL 1973, CE, UN38.3 |
| PRODUCT INFORMATION | |
| Product No. | 8888-01-000189 |

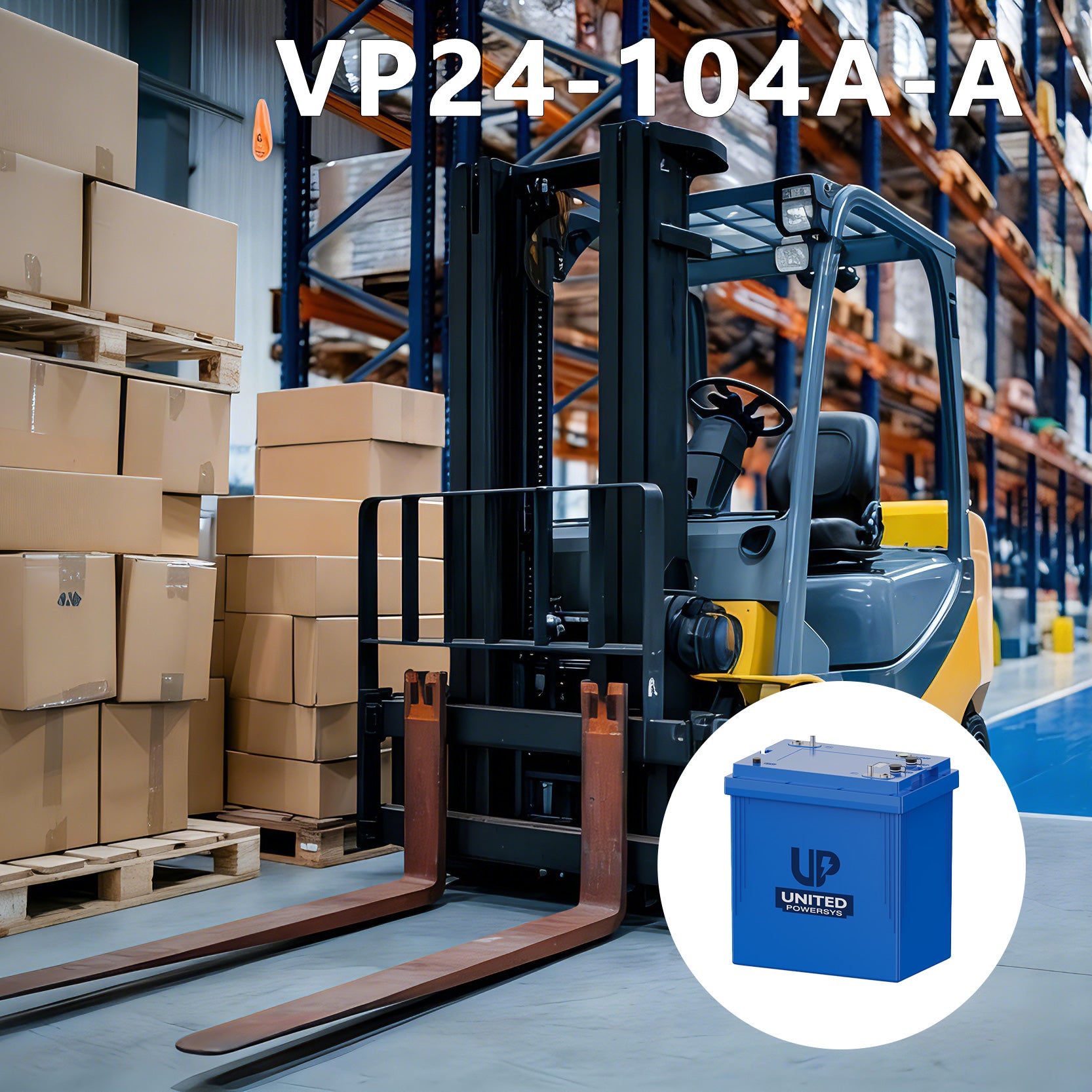

| Battery Model | VP24-104A-A |
| Product Description | Battery pack Li-ion 25.6V104Ah |
*0.5C/0.5C means charge 0.5C and discharge 0.5C
** Operation temperature means the ambient temperature. Protection may be triggered if the conditions defined in the specification are exceeded.
All specifications are subject to change without prior notice.
Performance may vary depending on, but not limited to cell usage and application. If a cell is used outside specifications, performance will diminish.
